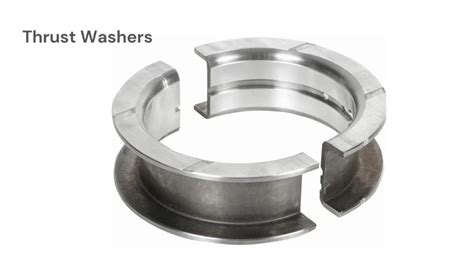

Thrust Washers: A Comprehensive Guide for Engineers and Technicians

In the realm of mechanical engineering, thrust washers play a crucial role in mitigating axial loads and preventing wear between mating components. Their unique design and materials make them essential for a wide range of applications, from heavy machinery to high-precision devices. This comprehensive guide delves into the intricacies of thrust washers, their types, materials, and effective strategies for their design and implementation.

Types of Thrust Washers

Flat Thrust Washers: The most common type, designed with a flat, circular shape to withstand axial loads in a single direction.

Spherical Thrust Washers: Feature a spherical inner surface that conforms to the mating surface, allowing for angular misalignment and uneven load distribution.

Tapered Thrust Washers: Have a tapered surface that enables axial load transmission over a larger contact area, reducing stress concentrations.

Materials for Thrust Washers

Steel: Commonly used due to its high strength, wear resistance, and cost-effectiveness.

Bronze: Offers excellent bearing properties, low friction, and corrosion resistance.

Aluminum: Provides lightweight and economical solutions, but has lower strength and wear resistance.

Design Considerations for Thrust Washers

• Load Capacity: Determine the axial load that the thrust washer must withstand to ensure proper performance.
• Speed: Consider the operating speed of the application to select a washer that can handle the generated centrifugal forces.
• Temperature: Take into account the operating temperature range to ensure the stability of the washer material.
• Lubrication: Choose a lubrication method (e.g., grease, oil bath) to reduce friction and extend the washer's lifespan.

Effective Strategies for Thrust Washer Design

• Optimizing Contact Area: Increase the contact area between the washer and mating surface to distribute the load more evenly.
• Controlling Friction: Select materials and lubrication methods that minimize friction, reducing wear and energy loss.
• Preventing Slippage: Ensure secure mounting and use anti-slip surfaces to prevent the washer from slipping under load.
• Selecting Suitable Materials: Choose materials with the appropriate combination of strength, wear resistance, and durability for the specific application.
• Accounting for Error: Allow for slight tolerances and misalignment during manufacturing to avoid premature failure or reduced performance.

Common Mistakes to Avoid

• Oversizing the Washer: Selecting a washer that is too large can lead to reduced load capacity due to uneven stress distribution.
• Underestimating Load Capacity: Choosing a washer that is too small could result in premature failure under excessive load.
• Ignoring Lubrication: Neglecting lubrication can increase friction, leading to accelerated wear and potential seizing.
• Improper Mounting: Improper mounting or alignment can cause slippage or reduced load-bearing capacity.
• Using Incompatible Materials: Selecting materials that are not compatible with the application environment or mating surfaces can compromise performance.

Step-by-Step Approach to Thrust Washer Design

1. Determine Load and Operating Conditions: Establish the axial load, speed, temperature, and lubrication requirements.
2. Select Washer Type and Material: Choose the appropriate type and material based on load capacity, speed, and operating environment.
3. Calculate Contact Area and Thickness: Determine the contact area and thickness to meet load capacity and minimize stress concentrations.
4. Design for Mounting: Specify mounting methods and tolerances to ensure secure installation and prevent slippage.
5. Consider Lubrication and Sealing: Select lubrication methods, such as grease or oil bath, to reduce friction and extend the washer's lifespan.
6. Test and Validate Design: Conduct performance tests to verify load capacity, wear resistance, and overall functionality.

Frequently Asked Questions (FAQs)

1. What is the difference between a thrust washer and a plain washer?
   A thrust washer is designed specifically to withstand axial loads, while a plain washer is used for spacing or preventing rotation.
2. How can I choose the right material for a thrust washer?
   Consider the load capacity, operating speed, temperature range, and lubrication requirements of the application.
3. What are the benefits of using spherical thrust washers?
   Spherical thrust washers allow for angular misalignment and uneven load distribution, making them suitable for applications with limited alignment tolerances.
4. How do I prevent slippage of a thrust washer?
   Use secure mounting methods, such as retaining rings or adhesives, and consider anti-slip surfaces on the washer and mating surfaces.
5. Why is lubrication important for thrust washers?
   Lubrication reduces friction, prevents wear, and extends the lifespan of the washer.
6. What are the key considerations for designing a thrust washer for high-speed applications?
   Ensure adequate lubrication, consider centrifugal forces, and verify washer stability at high speeds.

Conclusion

Thrust washers play a vital role in a wide range of mechanical applications by controlling axial loads and preventing wear between mating components. By understanding the different types, materials, design considerations, and effective strategies, engineers and technicians can optimize thrust washer performance and ensure reliable operation in demanding environments. Avoiding common mistakes, following a structured design approach, and addressing FAQs will further enhance the success of thrust washer design and implementation.
